Foundation Repair Photo Album: Foundation Repair and Stabilization in St. Petersburg, FL
In St. Petersburg, FL, Jim began noticing cracks forming in the walls at the back left corner of his home, raising concerns about the stability of his foundation. Looking for a permanent solution, he contacted LRE Foundation Repair, and our Customer Care team scheduled a complimentary inspection with one of our local Design Specialists.
After evaluating the home, our specialist determined that soil settlement beneath that corner had caused the foundation to shift. We developed a comprehensive repair plan to stabilize and restore the foundation using our helical pier system.
Once Jim approved the plan, our team installed each pier deep into the ground until reaching strong, load-bearing soil. The piers were then securely bracketed to the foundation footing, transferring the weight of the home to stable soil layers. From there, we carefully lifted the foundation back toward its original position, helping close the cracks in the walls.
Now, Jim’s foundation is fully stabilized, giving him the assurance that his home is secure and protected for many years to come.

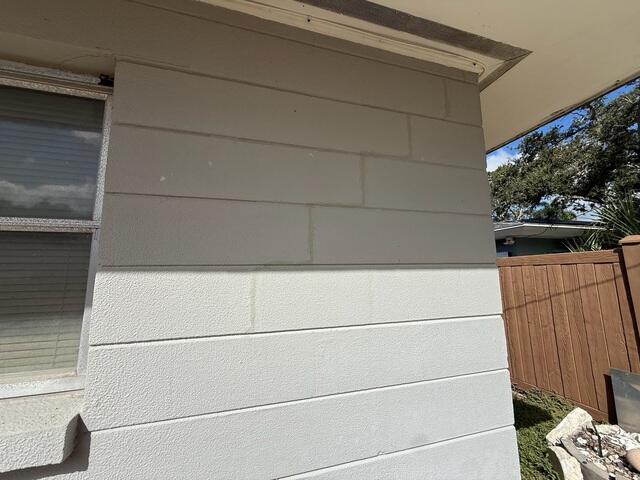

Stair-step Wall Cracks
The homeowner had noticed stair-step pattern cracks within the exterior walls of their home, a common indication that the foundation was settling.

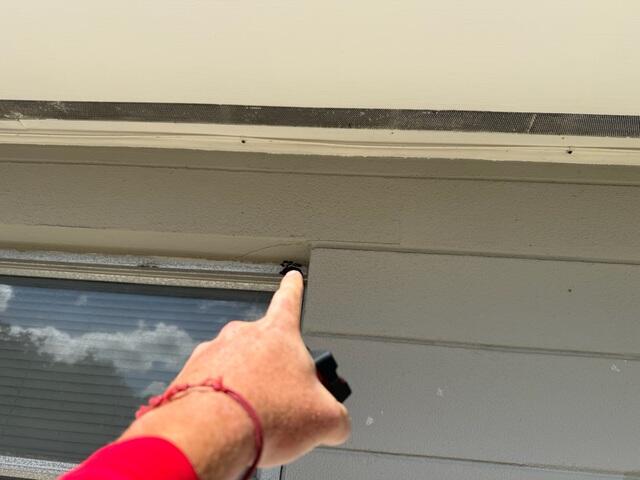

Window Frame Cracks
Cracks were extending from the corner of this window frame on the affected side of the home, a clear sign that the foundation had shifted.

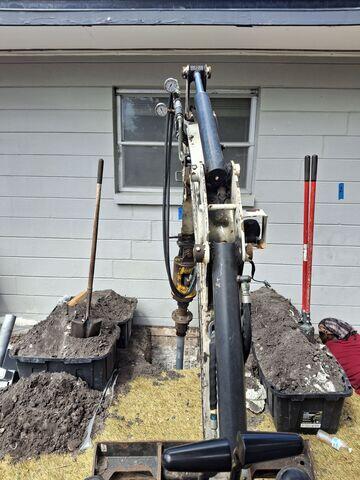

Installing Helical Piers
The LRE team begins driving helical piers deep into the soil beneath the foundation until strong, load-bearing soil layers are reached.

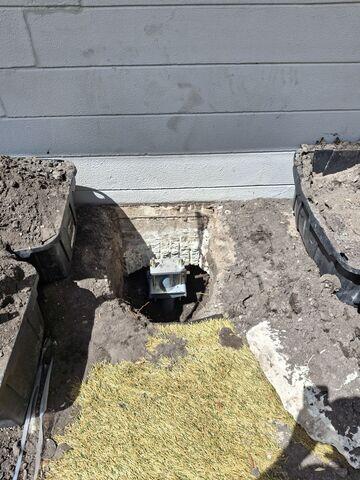

Complete Helical Pier Installation
The helical piers are fully installed and securely bracketed to the foundation, transferring the home's weight to stronger soil layers and providing permanent stabilization.

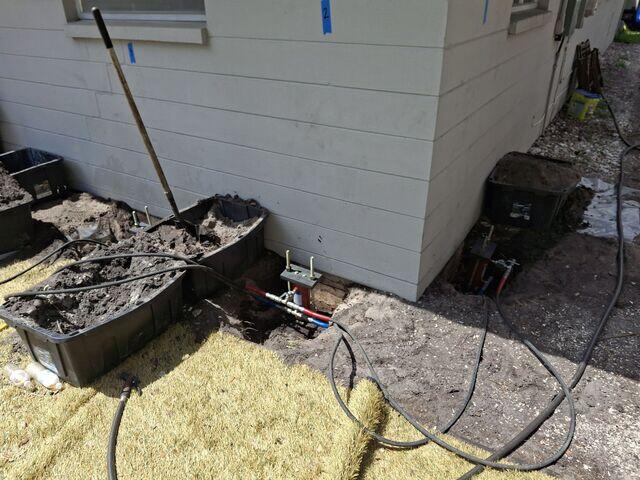

Lifting Foundation
With the helical piers installed and the foundation stabilized, the LRE team uses hydraulic pressure to carefully lift the foundation back into place. Once complete, the excavated soil is replaced to conceal the piers and restore a clean, seamless appearance.
